Copper Ore Processing Flow Chart

Primary Fracture: Anchoring the ROM Feed

The primary jaw crusher sets the volumetric pulse for the entire downstream circuit. If it bridges, the plant starves.

The foundation of the flow chart begins with the run-of-mine (ROM) feed. Copper porphyry is notoriously hard and abrasive. The C6X125 jaw crusher anchors this primary stage, designed specifically to absorb the kinetic shock of 800mm boulders. By reducing this massive feed to a consistent <200mm profile, the primary jaw physically guarantees that the downstream secondary cone crusher’s feed throat will not bridge or choke.

Architects must synchronize the vibratory feeder with the jaw’s amp draw. Overfeeding the primary stage causes localized packing in the chamber, forcing the toggle plate to endure fatal stress. A controlled, steady flow out of the primary stage is the only way to establish a stable mass balance across the entire conveyor network.

Secondary and Tertiary Lamination: “More Crushing, Less Grinding”

The core philosophy of modern copper processing is transferring the reduction work from the inefficient ball mill to the highly efficient cone crusher. Enforcing this architecture via an HPT300 multi-cylinder hydraulic cone crusher guarantees a strict output.

The hydraulic cone utilizes a high-speed 800 rpm eccentric rotation to initiate “stone-on-stone” laminated crushing. This does not just reduce the size of the rock; it induces kinetic micro-fractures along the copper porphyry grain boundaries. This pre-weakening enhances downstream flotation recovery rates before the ore even reaches the chemical liberation stage. Driving the ore down to a strict -12mm profile drops the downstream ball mill’s energy draw by up to 18%.

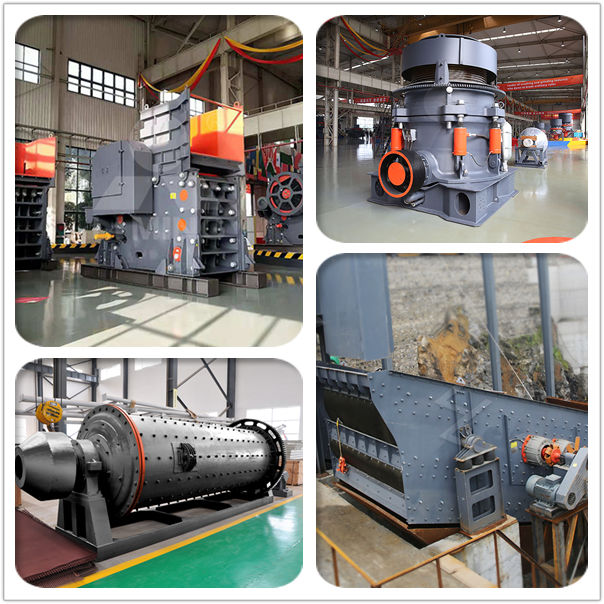

Synchronized Equipment Matrix for Copper Beneficiation

A flow chart is useless without the hardware capable of enforcing its volumetric limits.

Notice the synergy between the HPT300 short head and the S5X screen. The screen acts as the absolute gatekeeper for the ball mill, ensuring no oversized rock bypasses the tertiary loop. This hardware synchronization dictates the hardware amortization cycle of the entire plant.

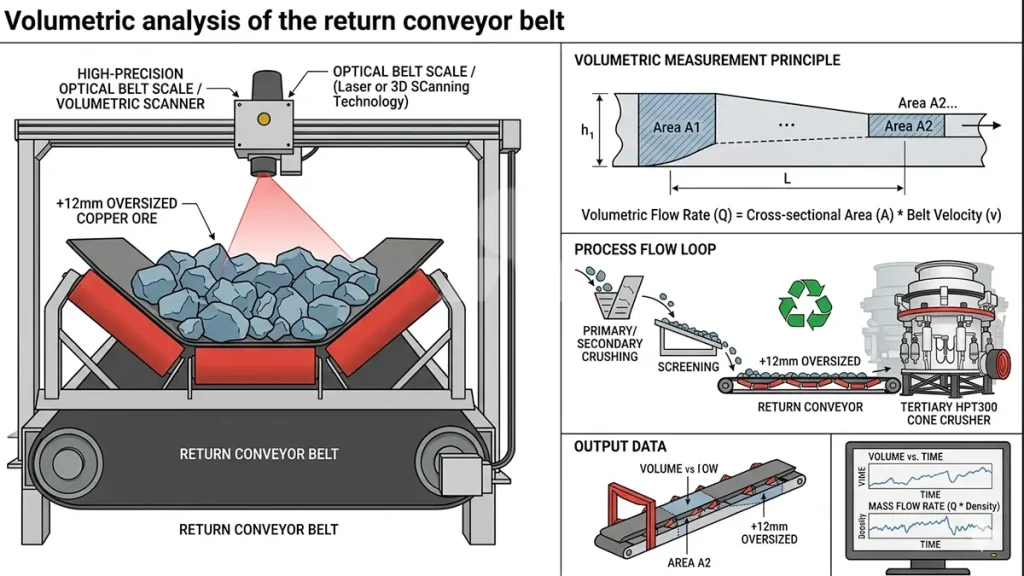

The screen sifts the material; anything under 12mm proceeds to the ball mill, while recirculating 20-25% of the +12mm oversize back to the cone crusher. This closed-circuit loop physically prevents coarse porphyry from entering the grinding phase and destroying the ball mill’s steel media, securing the operational viability of the beneficiation process.

Enforce the -12mm Mandate to Accelerate Payback

The physics of copper beneficiation are unforgiving. If your Copper Ore Processing Flow Chart fails to utilize a strict closed-circuit tertiary loop, you are forcing your ball mills to consume exorbitant amounts of electrical power to grind oversized rock. Next month, if you continue to feed +25mm ore into your grinding circuit, the severe wear on your steel media and the resulting drop in monomeric dissociation will cripple your capital payback velocity. Enforce the “more crushing, less grinding” architecture immediately.
