Copper Mining Process: Complete Equipment Guide and Solutions

Introduction to Copper Ore

Copper is one of the most important industrial metals, with extensive applications in electrical wiring, plumbing, and renewable energy technologies. Copper ores typically contain between 0.5% to 2% copper, mixed with various other minerals that must be separated through complex processing methods. The most common copper ores include sulfides such as chalcopyrite (CuFeS₂) and chalcocite (Cu₂S), as well as oxide minerals like cuprite (Cu₂O) and malachite (Cu₂CO₃(OH)₂).

Copper Production Process Flow Diagram

The copper production process typically involves several key stages:

1. Mining: Extraction of copper ore from open-pit or underground mines
2. Crushing: Reducing ore size for further processing
3. Grinding: Further size reduction to liberate copper minerals
4. Concentration: Separation of copper minerals from gangue
5. Smelting and Refining: Production of pure copper metal

How to Extract Copper: Process Overview

Extracting copper from its ores involves either pyrometallurgical (smelting) or hydrometallurgical (leaching) processes. The choice depends on the ore type:

Sulfide Ore Processing

Sulfide ores are typically processed through crushing, grinding, flotation, smelting, and electrorefining. Our equipment excels in the initial crushing stages, where efficient size reduction is critical for downstream processes.

Oxide Ore Processing

Oxide ores are often processed using hydrometallurgical methods, primarily heap leaching, followed by solvent extraction and electrowinning (SX-EW). This method avoids smelting altogether, making it more environmentally friendly for certain ore types.

Equipment Application in Copper Mining

Liming Heavy Industry provides comprehensive equipment solutions for copper mining operations:

Jaw Crushers for Primary Crushing

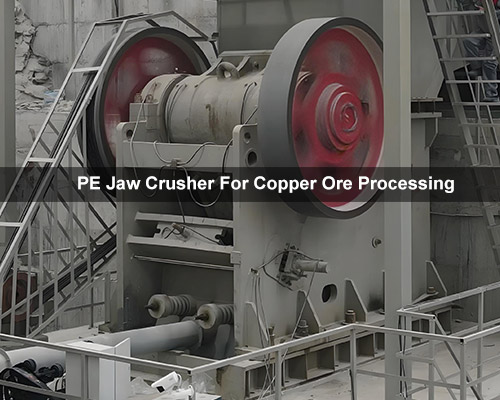

Our jaw crushers, including the PE series (PE600×900, PE750×1060, PE900×1200) and the C6X series, are ideal for primary crushing of copper ore. They feature high crushing ratios and uniform particle size, essential for efficient downstream processing.

Cone Crushers for Secondary and Tertiary Crushing

For secondary and tertiary crushing stages, our HPT and HST series cone crushers deliver exceptional performance. These include models like HST100, HST160, HPT200, and HPT300, which offer high capacity and excellent particle shape.

Impact Crushers for Specific Applications

Our CI5X and PFW series impact crushers are suitable for certain copper ore types where impact crushing is preferred over compression crushing.

Copper Ore Crushing Coefficient and Its Importance

The crushing coefficient, or crushability index, measures how easily a material can be reduced in size. Copper ores vary significantly in their crushing coefficients based on mineral composition, hardness, and structure. Understanding this parameter is essential for selecting the right equipment and designing efficient crushing circuits.

Our engineers conduct comprehensive ore testing to determine the optimal crushing approach for each specific copper deposit, ensuring maximum efficiency and minimum operating costs.

Equipment Technology and Innovation

Advanced Crushing Technology

Liming Heavy Industry crushers incorporate the latest technological innovations:

• Hydraulic adjustment and protection systems for consistent product size
• Advanced automation for optimized operation and maintenance
• Wear-resistant materials that extend component life in abrasive copper ore applications
• Energy-efficient designs that reduce power consumption per ton of processed material

Intelligent Control Systems

Our equipment can be equipped with advanced control systems that monitor operation parameters in real-time, automatically adjusting settings for optimal performance based on ore characteristics and production requirements.

Equipment Capacity and Types

Crushing Process Flow for Copper Ore

A typical three-stage crushing circuit for copper ore includes:

1. Primary Crushing: Copper ore is initially reduced to 150-200mm using our C6X Series Jaw Crusher
2. Secondary Crushing: Output from primary crushers is further reduced to 50-70mm using HPT or HST Cone Crushers
3. Tertiary Crushing: Final reduction to 10-15mm using cone crushers in closed circuit with vibrating screens

This progressive reduction approach ensures optimal size distribution for subsequent grinding and flotation processes.

Common Challenges and Solutions in Copper Processing

Variable Ore Hardness

Challenge: Fluctuations in ore hardness can lead to inconsistent crusher performance and product size.

Solution: Our crushers feature hydraulic adjustment systems that automatically compensate for hardness variations, maintaining consistent product quality.

Abrasive Wear

Challenge: Copper ores often contain abrasive minerals that cause rapid wear of crushing components.

Solution: We use specially formulated wear-resistant materials for crusher liners and impellers, significantly extending service life in abrasive applications.

Throughput Optimization

Challenge: Maximizing throughput while maintaining product specifications.

Solution: Our equipment designs focus on high capacity without compromising product quality, with optimized crushing chambers and advanced control systems.

Case Study: Copper Processing Plant in Chile

Project Overview

A major copper mining operation in Chile was experiencing capacity limitations in their primary crushing circuit, processing approximately 2,500 tons per day of copper ore with a crushing coefficient of 1.25.

Equipment Solution

Liming Heavy Industry supplied and installed:

• One C6X160 Jaw Crusher for primary crushing
• Two HPT300 Cone Crushers for secondary crushing
• Three S5X2160 Vibrating Screens for classification

Performance Results

• 35% increase in overall processing capacity
• 18% reduction in energy consumption per ton of processed ore
• 23% longer wear life on crushing components
• Annual production increased from 900,000 tons to 1,215,000 tons

Why Choose Liming Heavy Industry for Copper Processing Equipment?

Proven Expertise

With over 30 years of experience in mineral processing equipment manufacturing, we understand the specific challenges of copper ore processing and provide tailored solutions.

Comprehensive Product Range

From primary jaw crushers to tertiary cone crushers and screening equipment, we offer complete crushing circuits for copper processing operations of all sizes.

Technical Support

Our global network of engineers provides expert technical support, from initial process design through installation, commissioning, and ongoing operation.

Reliability and Durability

Our equipment is designed for the harsh conditions of mining operations, with robust construction and premium components that maximize uptime and minimize maintenance requirements.

Conclusion

Efficient crushing is fundamental to successful copper processing operations. The right equipment selection, based on thorough understanding of ore characteristics and process requirements, significantly impacts overall productivity and profitability.

Liming Heavy Industry offers technologically advanced, reliable crushing equipment specifically engineered for copper mining applications. Our solutions are backed by comprehensive technical support and a commitment to customer success.
