Demolition recycling is not a standard aggregate operation; it is an urban compliance battlefield. Crushing C40 reinforced concrete without an active overband magnetic separator guarantees that sheared 16mm rebar will slice entirely through a 1000mm-width B6X discharge conveyor belt within the first 400 tons of throughput. Ignoring 80 PSI dust suppression thresholds triggers immediate site closure. The physics of municipal compliance tolerate zero operational shortcuts.
Running a concrete recycling circuit without active magnetic separation is intentional asset destruction.
City inspectors do not care about your production schedules. We care about the hazardous debris leaving your site and the structural integrity of your operation. Crushing C40 reinforced concrete without an active overband magnetic separator guarantees that sheared 16mm rebar will slice entirely through a 1000mm-width B6X discharge conveyor belt within the first 400 tons of throughput. The twisted steel exits the crushing chamber like a jagged spear.
It catches the rubber, digs into the idlers, and violently rips the main discharge line in half.
You are left staring at a severed belt, smelling the acrid stench of burning rubber as the drive motor fights the jam. The daily compliance bleed spikes astronomically as you halt operations to splice a new belt. An integrated magnetic separator positioned precisely over the discharge transition point physically yanks the ferrous mass out of the material flow before it can contact the secondary screen. It is a non-negotiable parameter for urban operational expenditure.
I pulled the site logs from a suspended operation in downtown Frankfurt. They fed C50 bridge pillars directly into the primary unit without an overband magnet. The 16mm rebar, bent into aggressive hooks by the crushing action, bypassed the safety tripwires and sheared a 1000mm B6X belt entirely in two under 400 tons of load.
Contractors deploying standard jaw crushers for this application constantly battle blockages. The compressive force of a jaw folds the rebar around the toggle plate and pitman. This historical error creates a 30% yield of un-separated concrete blocks that choke the secondary screens, requiring manual blowtorch intervention.
Failing to maintain a strict 80 PSI on the chassis-mounted misting nozzles allows PM10 silica dust to breach urban municipal limits in under 12 minutes. The wind carries the micro-fines off-site, triggering respiratory sensors at the perimeter. The city will immediately lock the gates and enforce maximum fiscal penalties.
Data models prove that the 30-day foundation curing delay required for stationary setups destroys the asset payback velocity on short-term demolition contracts. Utilizing a pneumatic tire-mounted chassis allows the plant to absorb 550mm slabs directly from the excavator bucket on day one, completely neutralizing civil engineering delays.
Processing 250 tph of aged, high-strength concrete utilizing a standard jaw instead of a high-chrome impactor (like the CI5X1213) is an engineering miscalculation. The jaw crusher applies pure compressive force. It cracks the concrete but leaves the internal rebar grid largely intact, simply folding it into a dense, unmanageable mass.
Field Note: I watched a contractor lose three days of production cutting rebar out of a jaw’s crushing cavity with an oxy-acetylene torch because the metal had wrapped entirely around the pitman housing.
This leads to rebar entanglement around the toggle plate and a massive 30% yield of un-separated concrete blocks choking the secondary screens. An impact crusher attacks the material with kinetic kinetic energy. The heavy rotor and blow bars shatter the concrete against the impact plates, aggressively stripping the cement paste away from the steel skeleton. The steel exits the chamber clean, straight, and ready for magnetic extraction.
To establish an operation that satisfies municipal inspectors while maintaining high asset payback velocity, the machinery matrix must be strictly defined.
Deploying the NK1213C pneumatic mobile plant integrates the CI5X impactor and magnetic separator onto a single, city-compliant towing chassis.
| Process Stage | Recommended Model | Capacity (tons per hour) | Mounting Type |
|---|---|---|---|
| Primary Urban Demolition | NK1213C | 150-300 | Pneumatic/Tire-mounted |
| Core Crushing Engine | CI5X1213 Impact Crusher | Integrates up to 550mm Feed | Chassis Integrated |
| Ferrous Extraction | Overband Magnetic Separator | Matches 1000mm Belt Width | Suspended Frame |
Notice the exact capacity matching between the NK1213C and the 1000mm discharge belt. This ensures that the material bed depth remains thin enough for the magnetic separator to penetrate the rock layer and physically pull the 16mm rebar out of the discharge material flow.

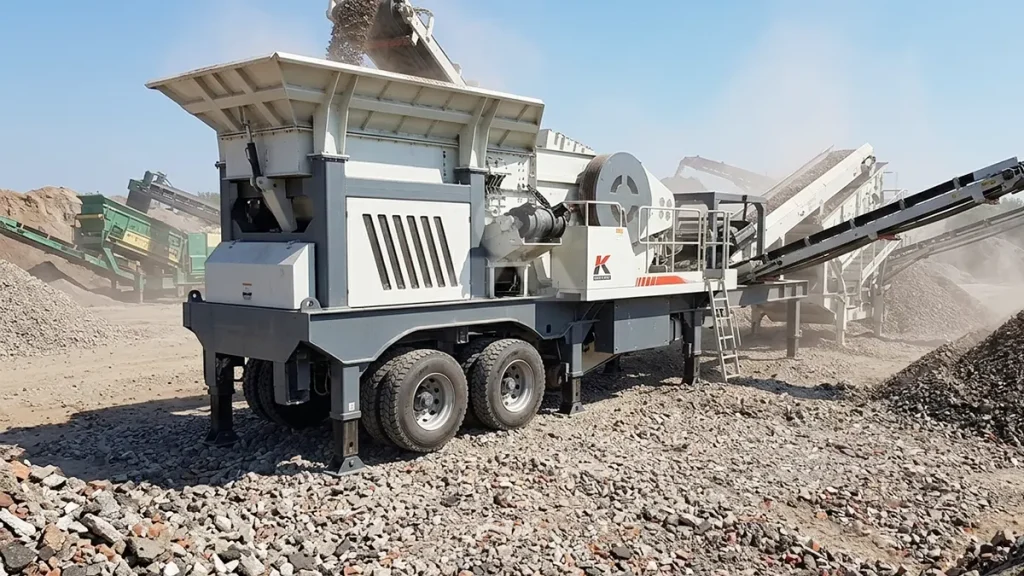

Urban demolition sites are temporary. Pouring a concrete foundation for a stationary plant is an absurd waste of capital and time. Deploying a pneumatic tire-mounted NK1213C plant eliminates the catastrophic 30-day foundation delay typical of stationary setups.
You tow it in, lower the hydraulic support legs, and start crushing.
This wheeled-towing physics allows the plant to absorb 550mm raw concrete slabs directly from the excavator bucket on day one. By the time a stationary plant has finished curing its concrete footings, the tire-mounted NK series has already processed 50,000 tons of urban waste, radically accelerating the project’s profitability timeline.
Dust is not a nuisance; it is a critical regulatory violation. Failing to maintain a strict 80 PSI on the chassis-mounted misting nozzles of an NK Series tire-mounted mobile plant allows PM10 silica dust to breach urban municipal limits in under 12 minutes.
The city’s environmental sensors will register the spike.
Once the threshold is crossed, the site is shut down, triggering immediate and severe municipal penalty thresholds. The high-pressure nozzles must blanket the impactor discharge point, the vibrating screen decks, and the transfer conveyor drops. The microscopic water droplets bind to the silica fines, forcing them to drop via gravity before they can become airborne. Operating with clogged nozzles or weak water pressure is operational suicide.
LH-CONCRETE_CRUSHING_PLANT-November/2025-Ref-#10948
Enforce 80 PSI suppression and overband extraction immediately.
“What is the exact width and tensile rating of your current primary discharge belt taking the rebar hits? Send me the specs, and let’s calculate your failure timeline.” — From the Desk of your Compliance Officer
