Portable Limestone Crusher

Introduction to Limestone

Limestone is a sedimentary rock primarily composed of calcium carbonate (CaCO3). It’s one of the most abundant rocks on Earth’s surface and serves as a crucial raw material in various industries including construction, agriculture, chemical manufacturing, and environmental management. Its moderate hardness (Mohs hardness of 3-4) and abrasiveness make it ideal for crushing operations, though its sometimes variable composition and moisture content can present specific processing challenges that require specialized equipment.

Limestone Crushing Processing Flow

The processing of limestone typically involves several stages to transform raw material into usable products of specific sizes:

Primary Crushing: Large limestone rocks (up to 930mm) are reduced to smaller sizes (around 100-300mm) using robust primary crusher like jaw crusher.
Secondary Crushing: Further reduction occurs through impact crusher or cone crusher to achieve intermediate sizes (20-100mm).
Tertiary Crushing and Shaping: For specific applications requiring cubical products, additional crushing stages may be employed.
Screening: crushed material is separated into various size fractions using vibrating screens to meet customer specifications.
Material Handling: Conveyors transport material between processes and to final stockpiles.

Portable crushing plants integrate these stages into a single, mobile platform, offering exceptional flexibility for various project requirements.

Application Scope of Our Equipment

Liming Heavy Industry’s portable crushing equipment is engineered for diverse applications across multiple sectors:

Quarry Operations: On-site primary and secondary crushing of limestone directly at extraction sites.
Construction Projects: Mobile production of aggregates for concrete, asphalt, and road base materials.
Infrastructure Development: Supporting large-scale projects like highway, railway, and bridge construction requiring consistent, high-quality aggregates.
Mining Operations: Processing limestone for industrial uses including cement production, flue gas desulfurization, and mineral processing.
Recycling Operations: Repurposing construction waste and concrete rubble into valuable aggregate products.

Technology and Innovation

Our portable limestone crusher incorporate cutting-edge technologies that deliver superior performance and reliability:

Dual-Power Drive Options: Our portable plants offer diesel generator set and municipal power dual-drive capabilities, allowing quick switching between power sources based on job site conditions.
Advanced Control Systems: Equipped with PLC systems that enable real-time monitoring of voltage, current, and hammer wear status, ensuring optimal operation and maintenance planning.
Hydraulic Adjustment & Control: Precise hydraulic adjustment of outlet opening and independent pre-screening systems enhance final product quality and operational flexibility.
Wear-Resistant Materials: Hammers and impact plates manufactured from high-chromium alloys extend service life by up to 50% compared to conventional materials.
Compact Design & Mobility: Integrated designs enable transfer and deployment within 10 minutes, adapting to complex terrain conditions with exceptional flexibility.
Eco-Friendly Operation: Integrated water spray dust suppression systems minimize environmental impact and improve working conditions.

Equipment Capacity and Types

Liming Heavy Industry offers a comprehensive range of portable crusher specifically designed for limestone processing applications:

Model	Feed Size (mm)	Capacity (t/h)	Power (kW)	Weight (t)	Primary Application
KF1214	≤300	90-180	132	~22.4	Secondary crushing
KF1315	≤300	120-250	160-200	~28.5	Secondary crushing
KE600-1	≤500	90-180	110	~46	Primary crushing
KE750-1	≤630	110-300	132	~49	Primary crushing
KE1100-1	≤930	300-600	220	~60	Primary crushing
KC160-2	≤168-192	160-260	160	~52	Secondary/Tertiary crushing

Our K series mobile crushing stations can be configured as “crush-then-screen” or “screen-then-crush” systems, with flexibility for two-stage or three-stage crushing and screening processes based on specific production requirements.

Common Challenges and Solutions

Limestone crushing operations often face specific challenges that our equipment effectively addresses:

Abrasive Wear: Limestone’s abrasive nature can accelerate equipment wear. Our solutions incorporate high-chromium alloy hammers and wear-resistant lining plates that extend service life by 50% compared to conventional materials.
Variable Moisture Content: Wet or sticky limestone can cause clogging and reduce throughput. Our designs include pre-screening options and impact crusher configurations that handle moist materials more effectively than other crusher types.
Multiple Product Requirements: Projects often need various aggregate sizes. Our portable plants with integrated screening systems can produce multiple specification products simultaneously, enhancing overall efficiency.
Site Accessibility Issues: Remote or challenging terrain requires mobile solutions. Our履带式移动破碎站 (tracked mobile crushing stations) feature powerful diesel engines, high-torque travel motors, and excellent gradeability to conquer difficult landscapes, including mountains and wetlands.
Dust Control: Limestone processing generates significant dust. Our systems integrate water spray dust suppression technology to maintain environmental compliance and improve working conditions.
Cost Control: We address this through energy-efficient designs that can reduce energy consumption by up to 30% compared to traditional equipment, and through dual-power options that allow connection to grid power when available to minimize fuel costs.

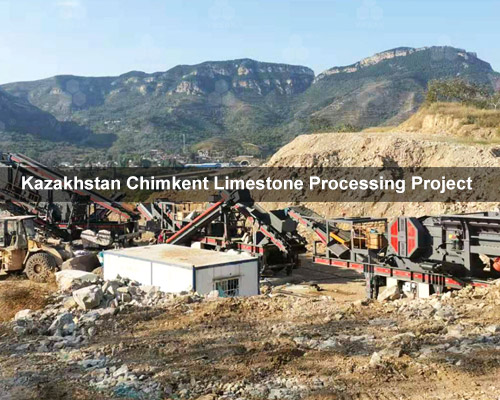

Case Study: Kazakhstan Chimkent Limestone Processing Project

Project Overview: A comprehensive limestone processing operation established in 2015 for concrete aggregate and cement raw material production.

Location: Chimkent, Kazakhstan

Material Processed: Limestone

Production Requirements:

Feed size: ≤720mm
Output products: 0-10mm, 10-25mm, 25-50mm
Required capacity: 250 T/H

Equipment Configuration:

KE1100-1 Primary Jaw Crushing Mobile Station
KC160-2 Secondary/Tertiary Crushing and Screening Mobile Station (featuring cone crusher)

Process Flow: Large limestone rocks were fed into the KE1100-1 mobile station where vibration feeders transferred material to the PEW1100 European version jaw crusher for primary size reduction. Initially crushed material was then conveyed to the CS160B cone crusher on the KC160-2 mobile station for secondary crushing. Finally, vibrating screens separated the crushed material into three specified product fractions.

Results: The project successfully achieved and maintained the target production rate of 250 tons per hour since its commissioning in May 2015. The portable crushing system provided the flexibility to optimize production based on specific product demand and demonstrated remarkable operational stability in challenging climatic conditions.

Why Choose Liming Heavy Industry?

Selecting Liming Heavy Industry for your portable limestone crushing needs provides distinct advantages:

Proven Expertise: With decades of experience in crushing technology, we understand material characteristics and processing requirements deeply.
Comprehensive Product Range: From individual portable crusher to complete mobile crushing systems, we offer solutions for every stage of limestone processing.
Quality Assurance: Our equipment manufactured under ISO9001:2000 quality certification and EU CE certification ensures international standards compliance.
Technical Support: We provide extensive support including ore testing assistance, project planning, equipment selection, process design, installation guidance, commissioning assistance, and operator training.
Global Network: With customers across Russia, Kazakhstan, Turkey, South Africa, Egypt, Vietnam, Malaysia, India, Australia, and EU countries, we understand international project requirements and provide reliable local support.
Innovation Focus: Continuous investment in R&D has resulted in 10 national invention patents and 20 national utility model patents, ensuring our technology remains at the industry forefront.
Cost Efficiency: Our designs focus not just on purchase price but on total cost of ownership, emphasizing energy efficiency, wear resistance, and maintenance accessibility to maximize your return on investment.

Conclusion

Liming Heavy Industry’s portable limestone crusher represent the convergence of mobility, efficiency, and reliability in mineral processing equipment. Our engineered solutions address the specific challenges of limestone crushing while offering flexibility for various operational requirements and site conditions. From our high-capacity KF1214 and KF1315 impact crusher to our primary KE series jaw crusher and complete mobile crushing stations, we provide equipment that delivers consistent performance, reduced operating costs, and superior final products. Backed by comprehensive technical support and a global service network, we partner with our customers to ensure their crushing operations achieve optimal productivity and profitability. Contact us today to discuss your specific limestone processing requirements and discover how our portable crushing solutions can enhance your operation’s efficiency and bottom line.
